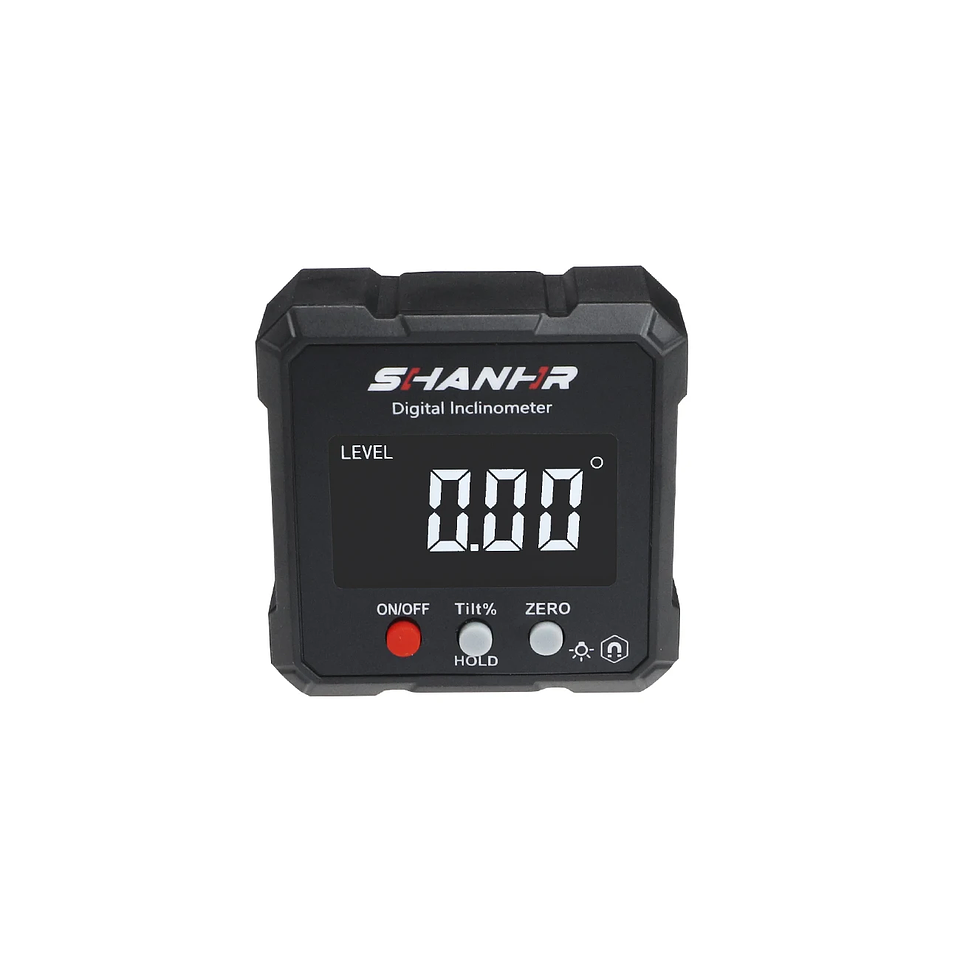

Digital Angle Gauge | Magnetic Inclinometer & Level Box
Description
Specifications

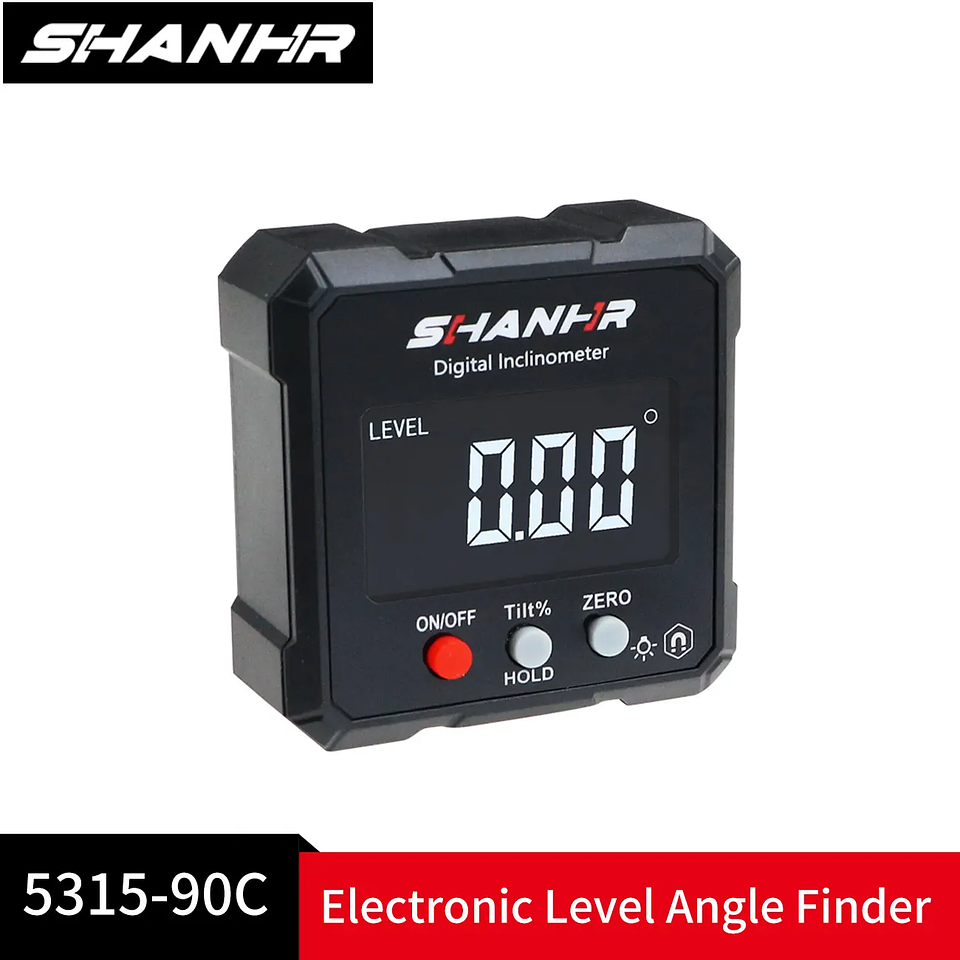

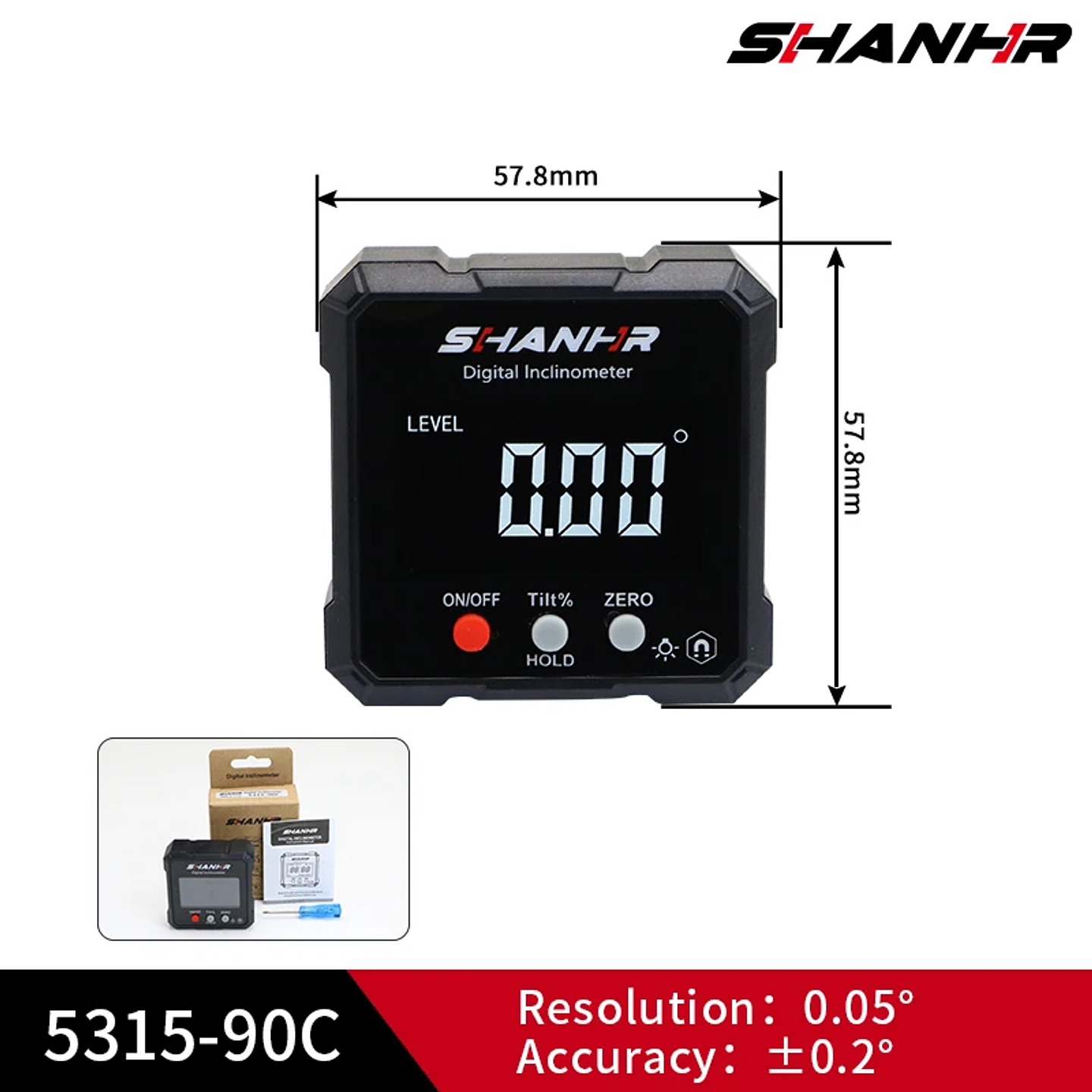

- Model: SHANHR-5315-90C
- Measuring Range: $4 \times 90^\circ$ ($360^\circ$ total)
- Accuracy: $\pm 0.2^\circ$
- Resolution: $0.05^\circ$
- Repeatability: $\pm 0.1^\circ$
- Material: Lightweight, Durable Plastic Enclosure
- Power Supply: 2x AAA Batteries (Not included)

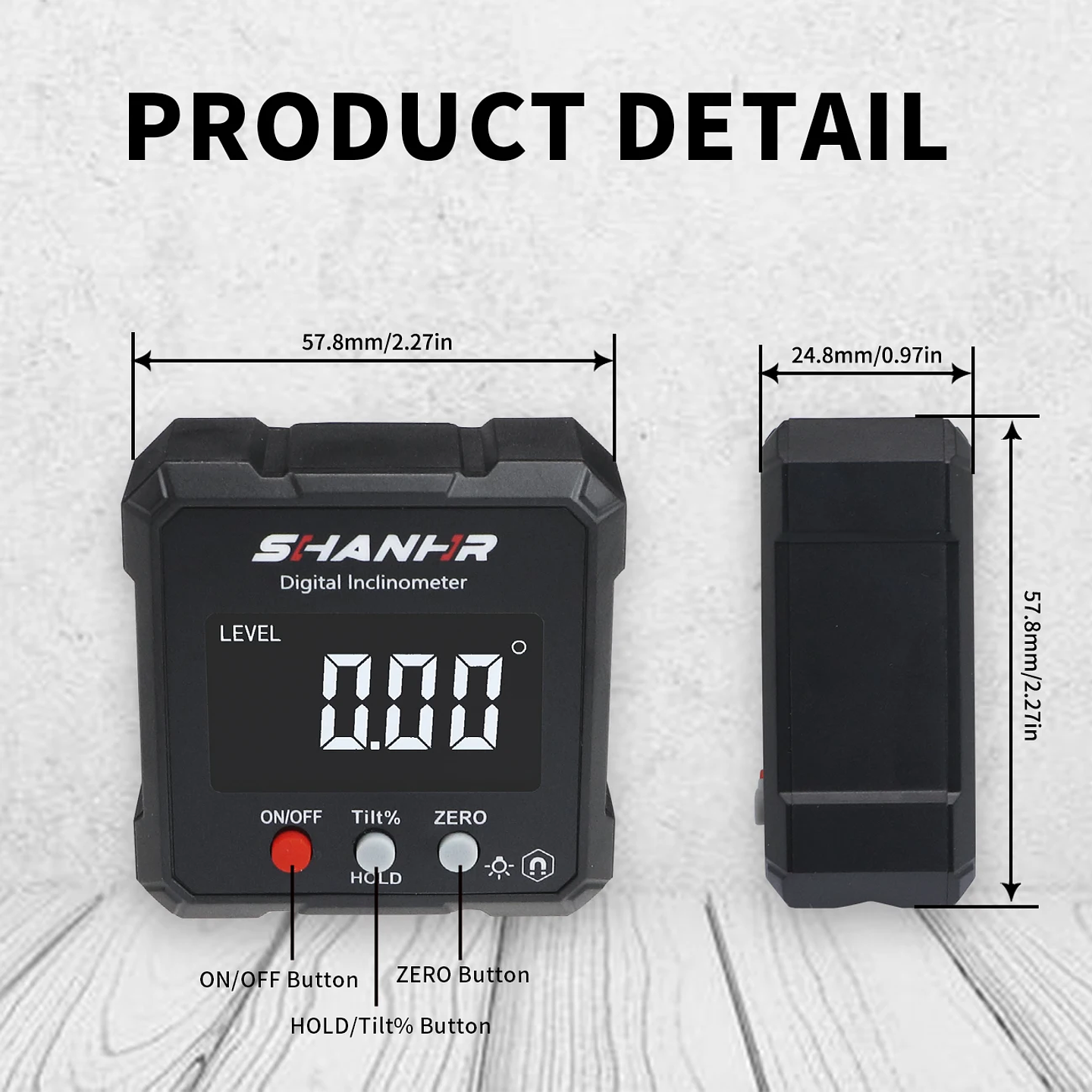

- Dimensions: 57mm x 55mm x 26mm
- Operating Temp: $0^\circ\text{C}$ to $50^\circ\text{C}$ ($32^\circ\text{F}$ to $122^\circ\text{F}$)
- Features: Data Hold, Backlight, Auto-Reversing Display, 3-Min Auto-Off
- Origin: Mainland China
Key Features
Powerful Magnetic Base

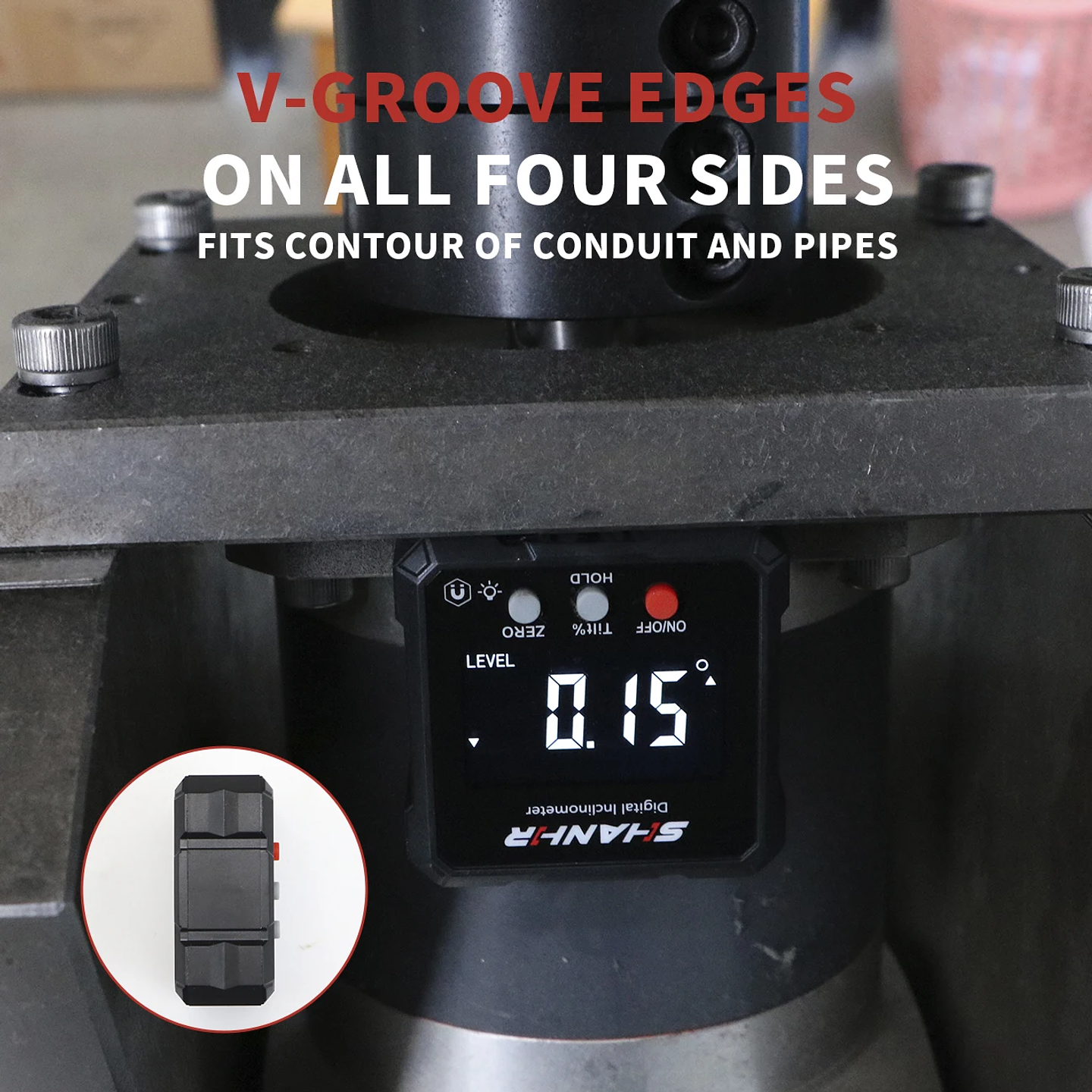

The base is equipped with integrated high-strength magnets that secure the gauge firmly to saw blades, drill press tables, or steel pipes. This allows for hands-free adjustment and ensures the device stays perfectly aligned during critical measurements.
Dual Measurement Modes

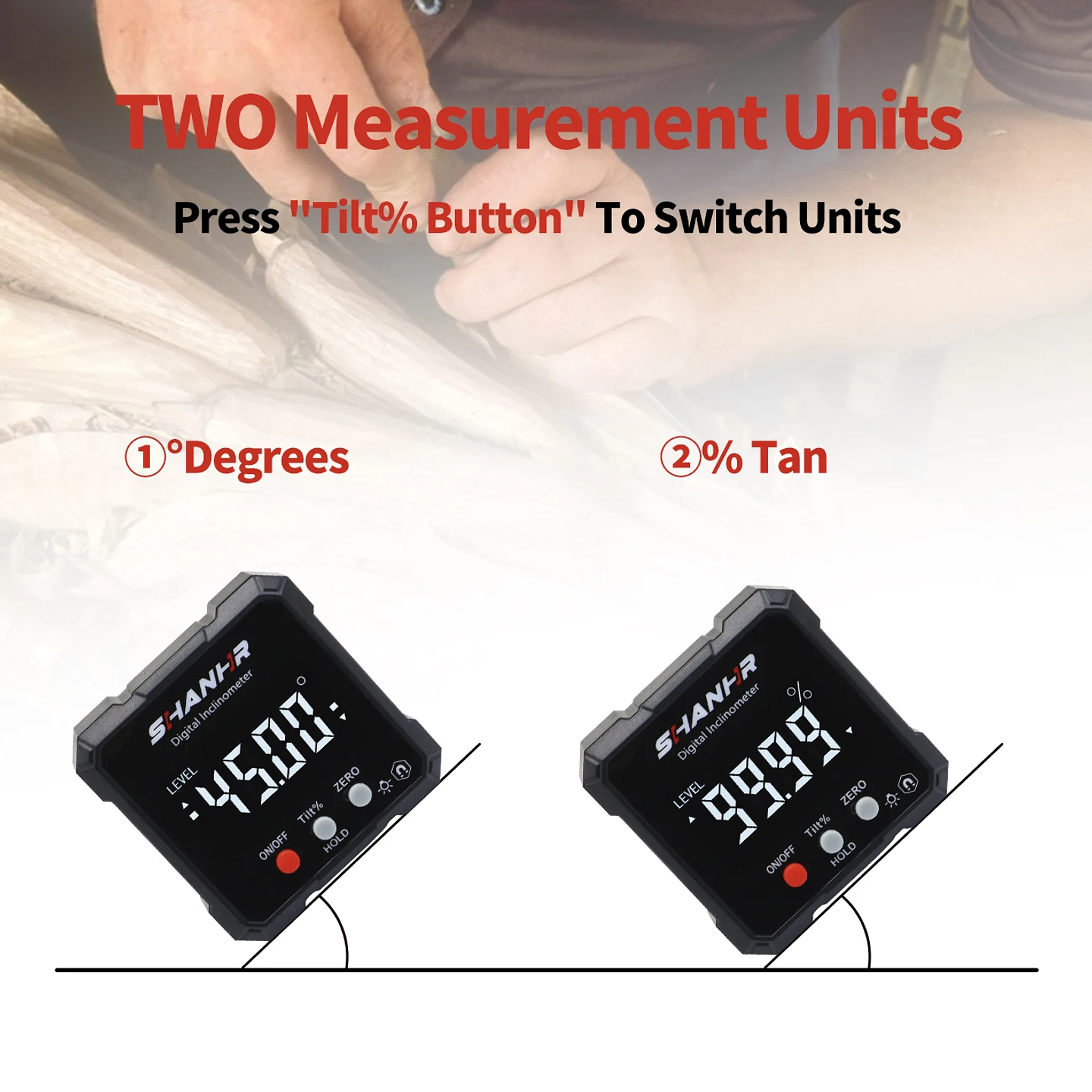

Switch seamlessly between Absolute and Relative measurement modes. Set a "Relative Zero" at any starting angle to calculate the precise difference between two surfaces—essential for complex joinery and automotive alignment.

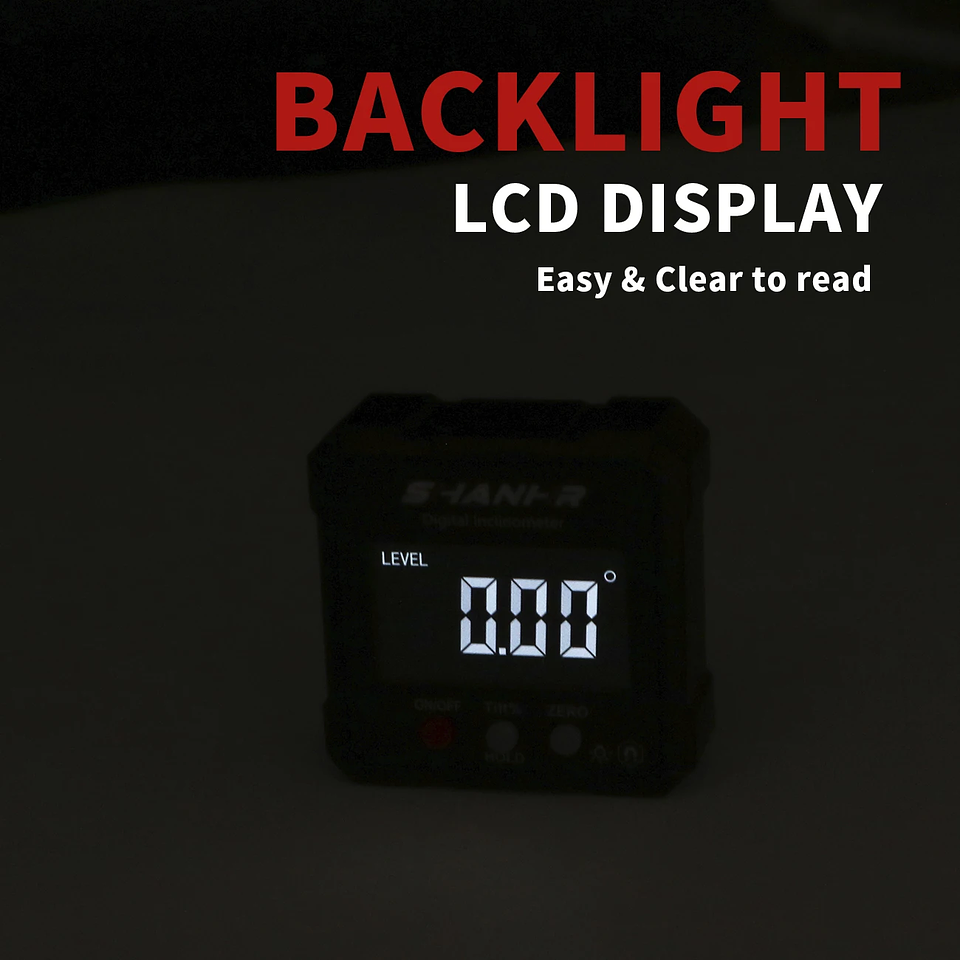

Auto-Reversing Backlit Display
Never struggle with inverted readings again. The smart LCD detects its orientation and flips the numbers automatically. Combined with a bright backlight, this ensures clear visibility in dark workshops or cramped mechanical bays.
Ultra-Compact & Portable
Weighing only 80g and measuring just 2.5 inches, this tool fits easily into a pocket or tool belt. Its small footprint makes it ideal for checking angles in tight spaces where traditional spirit levels simply cannot fit.
Intelligent Power Management
To preserve battery life, the inclinometer features an automatic power-off function that activates after 3 minutes of inactivity. The device is powered by two standard AAA batteries, making it easy to keep your tool ready for work.
